2025.04.07I. Product Description
The LKD3588M is a multifunctional industry application board carefully designed based on the Rockchip RK3588 chip platform, consisting of our company's LCB3588M core module and baseboard. The core module connects to the baseboard with a B2B connector and is secured with four M2 screws, ensuring stability and reliability. The board is versatile in functionality, rich in interfaces, compact in size, and slim and flat, making it suitable for products with limited structural space.
The LKD3588M comes with 3 USB 3.0 HOST and 1 USB 2.0 HOST interfaces, allowing for the connection of multiple USB cameras; it also has 2 mini-PCIe slots, which, in addition to supporting 4G modules, can also accommodate our company's mini-PCIe interface NPU computing cards developed based on the RK1808. Combined with multiple cameras, it forms an artificial intelligence vision computing board card that supports 6.0TOPS computing power. Additionally, the LKD3588M supports common communication module interfaces such as dual-band WIFI, BT5.0, 1000M Ethernet, UART, I2C, RS232, RS485, CANBUS, and offers multiple display interfaces including 3 HDMI outputs, 1 dual-channel LVDS, and 1 DP interface, supporting multi-screen display with different content.
The LKD3588M supports Android, Linux, and Ubuntu systems, offering advantages such as high performance, high reliability, and high expandability, and provides open-source system code to users. Users can develop and customize based on this product, and our company provides comprehensive technical support for developers and enterprise users, enabling them to efficiently complete research and development work and significantly shorten the product development and mass production cycle.

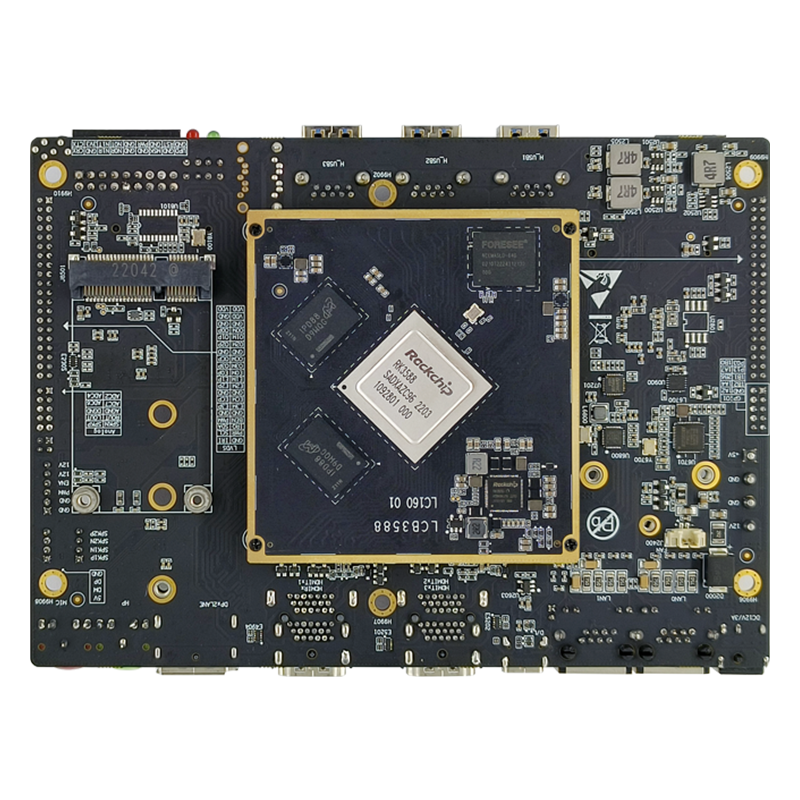

II. Product Appearance
III. Functional Summary
- Power supply: DC 12V/3A, with overvoltage, undervoltage, and overcurrent protection.
- Multiple USB interfaces: Provides 3 USB 3.0 HOST and 1 USB 3.0 OTG; 1 USB 2.0 interface, with 2 internal USB 3.0 to mini-PCIe interfaces.
- 2 onboard MIPI PCIe slots for connecting 4G modules and our company's RK1808 AI computing cards.
- Various display interfaces: HDMI 1.4, HDMI 2.0, dual-channel LVDS, DP, etc., supporting multi-screen display with different content.
- Onboard Gigabit Ethernet x2, dual-band WIFI, and BT5.0, supporting 802.11 a/b/g/n/ac protocols.
- M.2 M-KEY interface for external NVMe protocol SSDs.
- Supports 3 UART interfaces, 1 I2C interface, and 2 CANBUS.
- Supports multiple operating systems including Android, Debian, Buildroot, and Ubuntu.
- Ultra-slim design, with a total height of only 28.25mm, especially suitable for products with limited structural height.
- Temperature range: -40°C to 85°C.
IV. Product Dimensions
V. Application Examples
Widely applicable in industrial control, AR/VR, artificial intelligence, energy and power, smart security, advertising displays, and other fields.
