LPC3588
SOC :RK3588
Storage :4+32 GB / 8+64 GB/ 16+128 GB
Size :204mm(L)*120.5mm(W)*48.2mm(H)

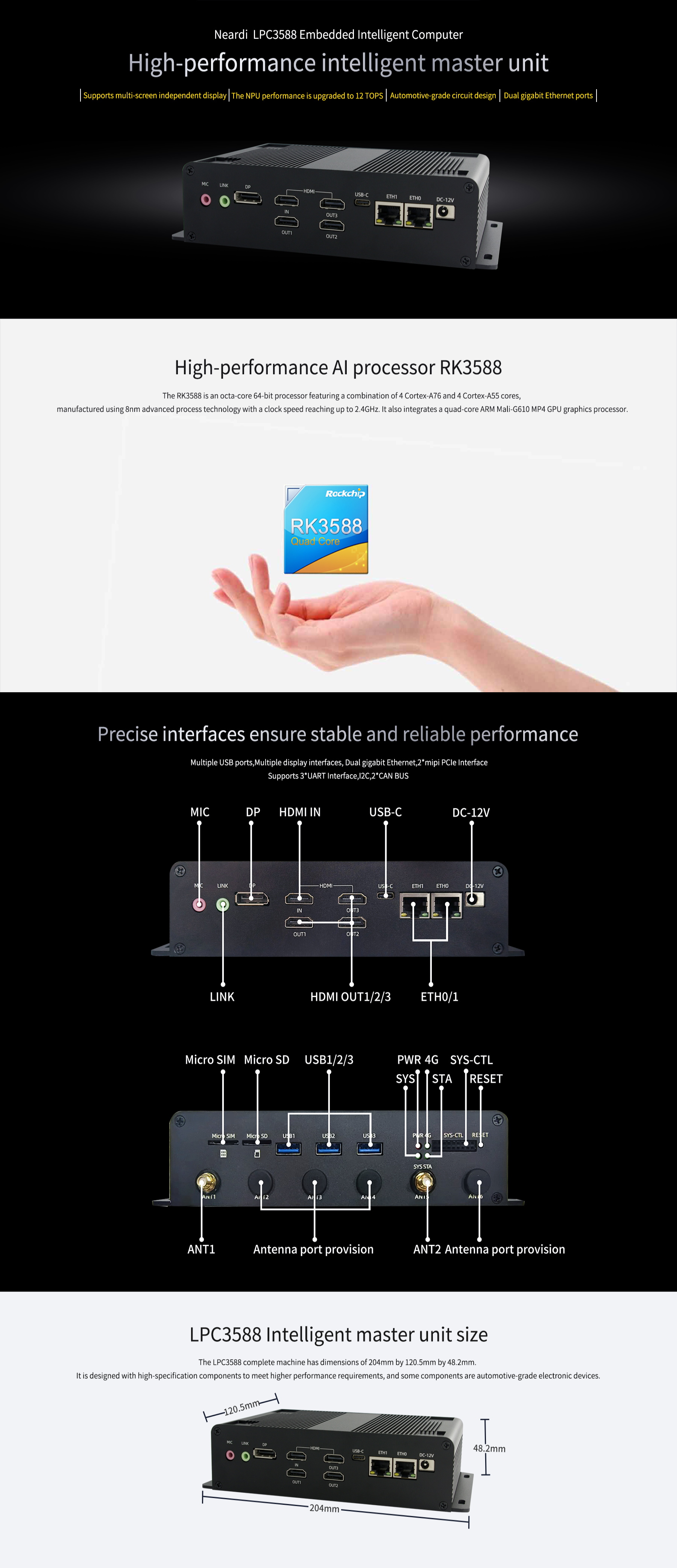

Product :The LPC3588 smart computing device offers 3 Type-A USB 3.0 HOST ports and 1 Type-C USB 3.1 OTG port, which support the connection of multiple USB cameras. Additionally, it features 2 mini-PCIe slots for the expansion of 4G modules or NPU computing cards. In terms of communication capabilities, it supports dual-band WiFi 6, Bluetooth 5.0, and dual Gigabit Ethernet. For display interfaces, it includes 3 HDMI outputs, 1 HDMI 2.0 input, and 1 DP output, with support for multi-screen display with different content.
| Basic Parameters | |
| SOC | RK3588, an 8nm process; 8-core 64-bit processor architecture (4xA76 + 4xA55). |
| GPU | ARM Mali-G610 MC4 GPU; supports OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2. |
| OpenCL 1.1/1.23/2.0; high-performance 2D graphics acceleration module. | |
| NPU | 6TOPS computational power; 3-core architecture; supports int4/int8/int16/FP16/BF16/TF32. |
| VPU | Supports video decoding for H.265/H.264/AV1/VP9/AVS2, with a maximum support of 8K at 60 frames per second (FPS). |
| Supports video encoding for H.264/H.265, with a maximum support of 8K at 30 FPS. | |
| DDR | LPDDR4/LPDDR4X memory, with options for 4GB/8GB/16GB. |
| eMMC | eMMC 5.1 storage, with options for 32GB/64GB/128GB. |
| PMU | RK806 |
| OS | Android / Ubuntu / Buildroot / Debian |
| Hardware Specifications | |
| Power | DC12V - 3A (DC Jack 5.5*2.1mm / PH2.0 wafer connector) |
| USB | 3*Type-A USB3.0 HOST + 1* Type-C USB3.1 OTG |
| Display out | 2*Type-A HDMI 2.1 up to 8K@60fps or 4K@120fps (系統版本不同規格不同) |
| 1*Type-A HDMI 1.4 up to 1080P@60fps(系統版本不同規格不同) | |
| 1* DP1.2 2Lane Output | |
| Display in | 1* HDMI-IN（4K@60fps)，支持 HDCP 2.3(系統版本不同規格不同) |
| Audio | φ3.5mm earphone Jack with L/R audio out；φ3.5mm micphone Jack with Mic in |
| Other Specifications | |
| Dimensions | L*W*H(mm) 204*120.5*48.2 |
| Temperature | Operating Temperature: -10 - 70℃ |
| Weight | Approximately 674g (excluding peripherals) |
-
