LPM3568
SOC :RK3568
Storage :2+16 GB / 4+32GB/ 8+64 GB
Size :227mm(L)*120mm(W)*57.7mm(H)

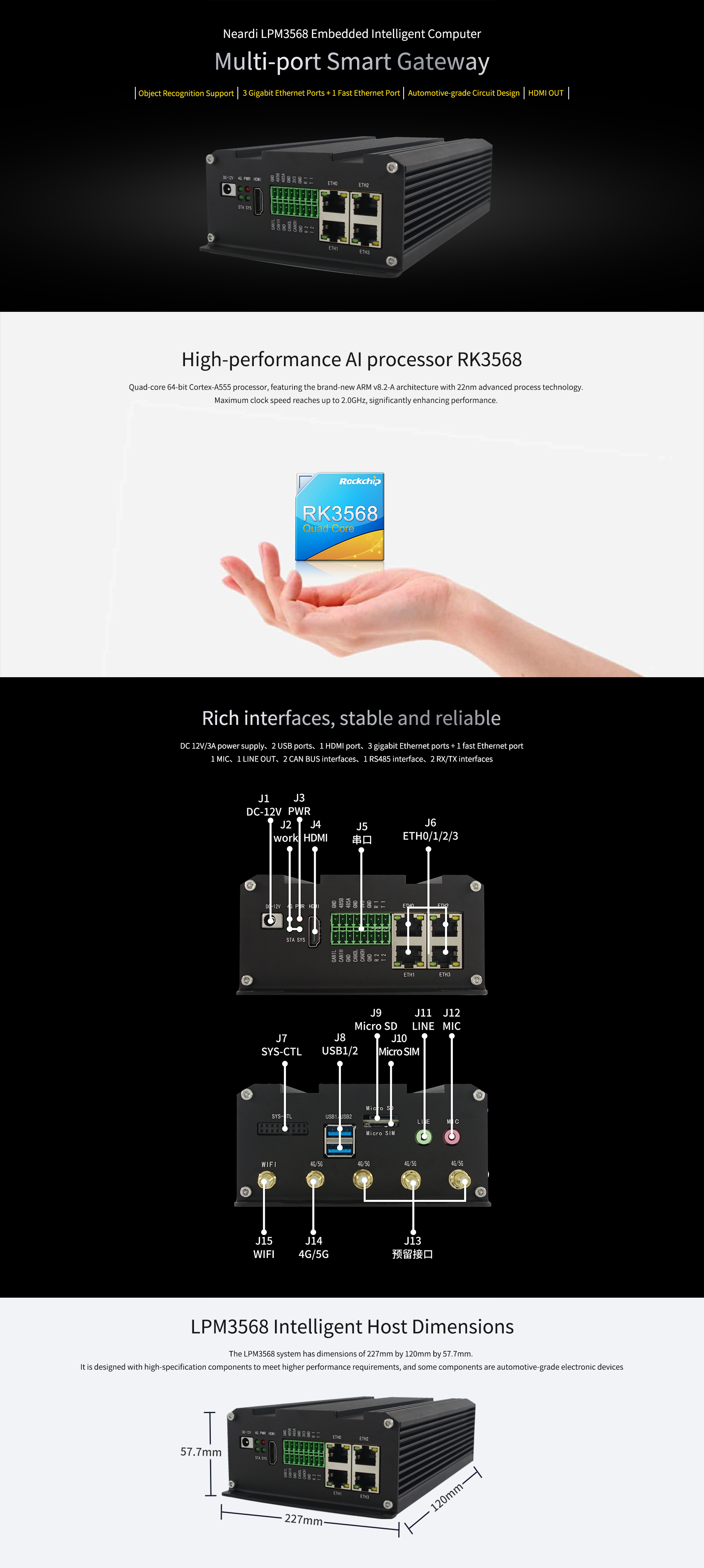

Product :The LPM3568 smart computing device is a high-performance product on the Rockchip RK3568 chip platform. It is made with full aluminum material and a fanless design, combined with an innovative internal structure to achieve efficient heat dissipation, allowing the host to operate stably in harsh industrial environments. It offers a variety of interfaces, including 2 Type-A USB 3.0 HOSTs for connecting USB cameras, 1 mini-PCIe slot for expanding 4G modules or NPU computing cards, as well as support for dual-band WiFi 6, Bluetooth 5.0, 3 Gigabit Ethernet ports, CANBUS, RS485, and other communication modules, along with 1 HDMI interface.
| Basic Parameters | |
| SOC | RK3568/RK3568J is a 22nm process technology system-on-chip (SoC) featuring a quad-core 64-bit Cortex-A55 processor with a maximum clock speed of up to 2.0GHz. |
| GPU | ARM G52 2EE, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, high quality 2D Graphics Engine build in |
| NPU | up to 1 TOPS; INT8/INT16/FP16/BFP16 MAC hybrid operation supported；TensorFlow, TF-lite, Pytorch, Caffe, ONNX, MXNet, Keras, Darknet deep-learning frameworks supported |
| VPU | 4K VP9 and 4K H265 up to 60fps video decoding |
| 1080P up to 100fps H265/H264 video encoding | |
| 8M ISP with HDR | |
| DDR | LPDDR4/LPDDR4X RAM is available in optional capacities of 1GB, 2GB, 4GB, or 8GB. |
| eMMC | eMMC 5.1 flash storage is available in optional capacities of 8GB, 16GB, 32GB, 64GB, or 128GB. |
| PMU | RK806 |
| OS | Android / Ubuntu / Buildroot / Debian |
| Hardware Specifications | |
| Power | DC12V - 3A (DC Jack 5.5*2.1mm / PH2.0 wafer connector) |
| USB | 1*Type-A USB3.0 HOST 1*Type-A USB2.0 HOST |
| Connectivity | 2*CANBUS,1*RS485，2*RX/TX |
| Display | 1*Type-A HDMI 2.0 |
| Audio | 1*φ3.5mm audio out, |
| 1*φ3.5mm microphone | |
| Net work | 3* 10/100/1000Mbps Ethernet 1*10/100Mbps Ethernet |
| Other Specifications | |
| Dimensions | L*W*H(mm) 227*120*57.7 |
| Temperature | Operating Temperature: -10 - 70℃ |
| Weight | Approximately 1083g (excluding peripherals) |
-
