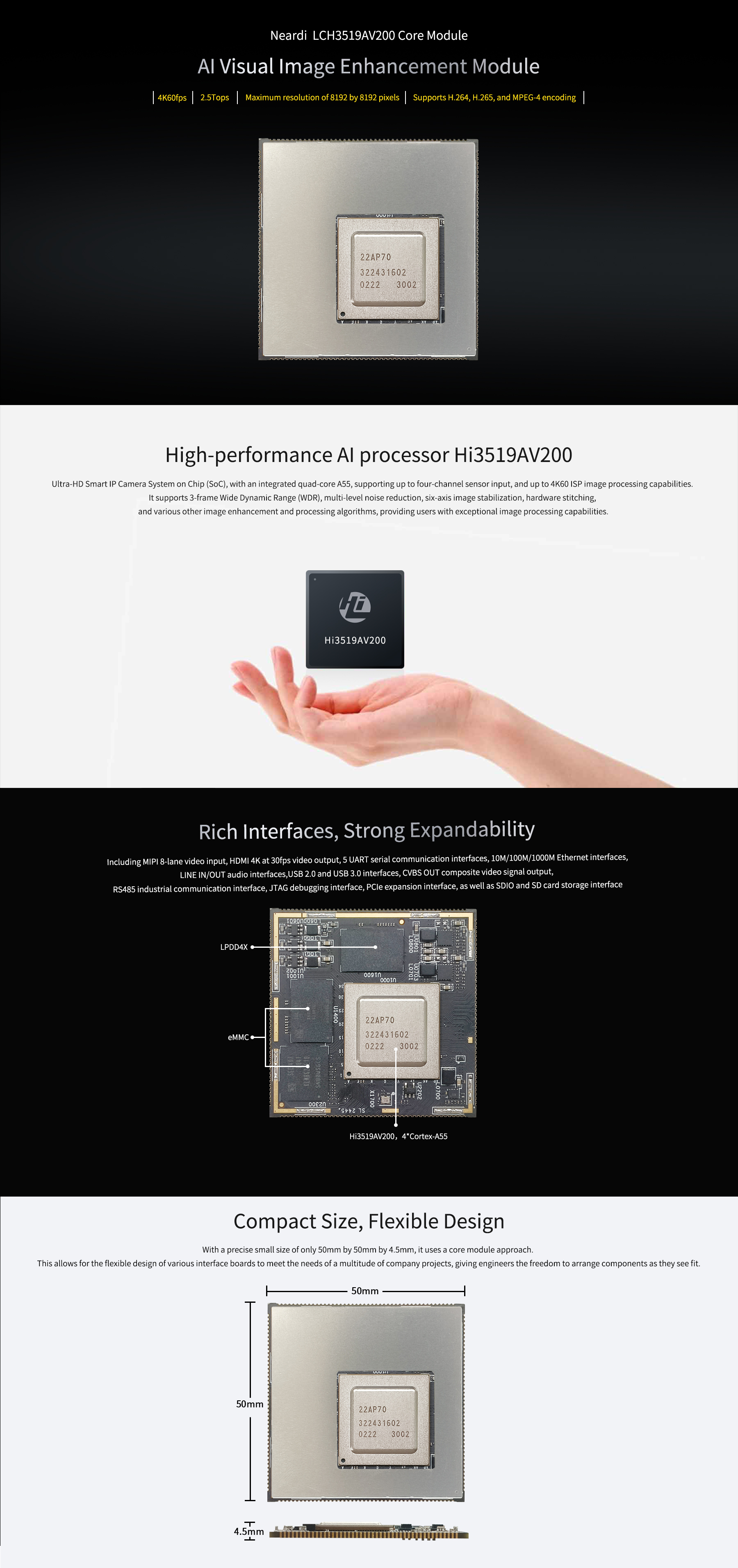

LCH3519AV200
SOC：Hi3403V100
Storage：4+32GB/8+64GB
Size：50mm(L)*50mm(W)*4.5mm(H)
Product：The LCB3519AV200 includes sections for the CPU, DDR, and eMMC. The DDR uses mainstream market models LPDDR4/LPDDR4X, with lower power consumption and faster frequencies, available in 4GB/8GB configurations; the eMMC adopts the high-speed eMMC 5.1 standard, available in 32GB/64GB options. It boasts a rich set of peripheral interfaces, including MIPI 8Lane video input, HDMI 4K30fps video output, 5 UART serial communication interfaces, 10M/100M/1000M Ethernet interfaces, LINE IN/OUT audio interfaces, USB2.0 and USB3.0 interfaces, CVBS OUT composite video signal output, RS485 industrial communication interface, JTAG debugging interface, PCIe expansion interface, as well as SDIO and SD card storage interfaces, supporting the needs of a variety of application scenarios.
| Pin Number | Pin Name |
| 1 | AC_OUTL |
| 2 | AC_OUTR |
| 3 | CVBS_IN |
| 4 | GND |
| 5 | HDMI_TXCP |
| 6 | HDMI_TXCN |
| 7 | HDMI_TX0P |
| 8 | HDMI_TX0N |
| 9 | HDMI_TX1P |
| 10 | HDMI_TX1N |
| 11 | HDMI_TX2P |
| 12 | HDMI_TX2N |
| 13 | MIPI_RX1_D2N |
| 14 | MIPI_RX1_D2P |
| 15 | MIPI_RX1_D3N |
| 16 | MIPI_RX1_D3P |
| 17 | MIPI_RX1_D0P |
| 18 | MIPI_RX1_D0N |
| 19 | MIPI_RX1_CK0P |
| 20 | MIPI_RX1_CK0N |
| 21 | MIPI_RX1_D1P |
| 22 | MIPI_RX1_D1N |
| 23 | MIPI_RX1_CK1P |
| 24 | MIPI_RX1_CK1N |
| 25 | MIPI_RX0_CK1P |
| 26 | MIPI_RX0_CK1N |
| 27 | MIPI_RX0_D1N |
| 28 | MIPI_RX0_D1P |
| 29 | MIPI_RX0_D3P |
| 30 | MIPI_RX0_D3N |
| 31 | MIPI_RX0_D2P |
| 32 | MIPI_RX0_D2N |
| 33 | MIPI_RX0_CK0N |
| 34 | MIPI_RX0_CK0P |
| 35 | MIPI_RX0_D0N |
| 36 | MIPI_RX0_D0P |
| 37 | GND |
| 38 | GPIO0_2_PWM0_O15_1V8 |
| 39 | GPIO0_4_1V8 |
| 40 | PWM_TO_1V1/UART1_2_VD3318_SEL |
| 41 | JTAG_TDO/LCD_RESET_1V8 |
| 42 | JTAG_TCK/TP_RST_1V8 |
| 43 | JTAG_TMS/P_IRIS_CONTROL4_1V8 |
| 44 | GPIO9_6_1V8 |
| 45 | GND |
| 46 | GPIO9_5_1V8 |
| 47 | MUTE_IO10_0_1V8 |
| 48 | 5V0_MAIN |
| 49 | 5V0_MAIN |
| 50 | 5V0_MAIN |
| 51 | GND |
| 52 | UART4_TXD_1V8 |
| 53 | UART0_TXD_1V8 |
| 54 | UART4_RXD_1V8 |
| 55 | UART0_RXD_1V8 |
| 56 | PWR_WAKEUP1_1V8 |
| 57 | PWR_EN1_IO9_7_1V8 |
| 58 | PWR_WAKEUP0_1V8 |
| 59 | SENSOR1_CLK/PCIE_DEEMPH_SEL |
| 60 | SPI1_CSN1/SENSOR3_CLK_1V8 |
| 61 | JTAG_TDI/TP_INT_1V8 |
| 62 | I2C0_SDA |
| 63 | I2C0_SCL |
| 64 | SENSOR1_VS/PCIE_SLV_BOOT_MODE |
| 65 | SENSOR1_RSTN |
| 66 | SENSOR1_HS/PCIE_REFCLK_SEL |
| 67 | SPI1_SCLK/I2C5_SCL_1V8 |
| 68 | SPI1_SDO/I2C5_SDA_1V8 |
| 69 | SPI1_SDI/I2C4_SCL_1V8 |
| 70 | SPI1_CSN0/I2C4_SDA_1V8 |
| 71 | SPI0_SDO/I2C2_SDA_1V8 |
| 72 | SPI0_SCLK/I2C2_SCL_1V8 |
| 73 | SENSOR2_CLK/RGMII0_VDD33_SEL |
| 74 | SENSOR0_CLK/UPS_MODE0 |
| 75 | POR_ENABLE_1V8 |
| 76 | JTAG_TRSTN/PWM_FAN_1V8 |
| 77 | SENSOR0_HS/UPS_MODE1 |
| 78 | SENSOR0_VS/FMC_READRETRY |
| 79 | SPI0_CSN/I2C3_SDA_1V8 |
| 80 | SPI0_SDI/I2C3_SCL_1V8 |
| 81 | SENSOR0_RSTN |
| 82 | PWM_LCD/SDIO1_VD3318_SEL |
| 83 | GND |
| 84 | 1V8_SOC |
| 85 | 1V8_SOC |
| 86 | 1V8_SOC |
| 87 | 3V3_PER |
| 88 | 3V3_PER |
| 89 | 3V3_PER |
| 90 | GND |
| 91 | MDCK0 |
| 92 | MDIO0 |
| 93 | DC_IRIS_PWM_V3318U12 |
| 94 | USB_0_OVRCUR_1V8 |
| 95 | USB_0_PWREN_1V8 |
| 96 | USB_1_VBUS_1V8 |
| 97 | USB_1_OVRCUR_1V8 |
| 98 | USB_1_PWREN_1V8 |
| 99 | PCIE_RST_N_1V8 |
| 100 | GND |
| 101 | RGMII0_TXD2/BOOT_SEL1 |
| 102 | RGMII0_TXD0/FAST_BOOT_MODE |
| 103 | RGMII0_TXEN |
| 104 | RGMII0_TXD1/SFC_EMMC_BOOT_MODE |
| 105 | RGMII0_TXD3/BOOT_SEL0 |
| 106 | RGMII0_TXCKOUT |
| 107 | SPI2_CSN_1V8 |
| 108 | SPI2_SCLK_1V8 |
| 109 | SPI2_SDO_1V8 |
| 110 | SPI2_SDI_1V8 |
| 111 | GND |
| 112 | USB_DM1 |
| 113 | USB_DP1 |
| 114 | GND |
| 115 | SDIO1_CLK_V3318SD1 |
| 116 | SDIO1_D2_V3318SD1 |
| 117 | SDIO1_CMD_V3318SD1 |
| 118 | SDIO1_D3_V3318SD1 |
| 119 | SDIO1_D1_V3318SD1 |
| 120 | SDIO1_D0_V3318SD1 |
| 121 | RGMII0_RXDV |
| 122 | RGMII0_RXD0 |
| 123 | RGMII0_RXD1 |
| 124 | RGMII0_RXCK |
| 125 | RGMII0_RXD3 |
| 126 | RGMII0_RXD2 |
| 127 | GND |
| 128 | SDIO0_CDATA0 |
| 129 | SDIO0_CARD_DET_V3318U12 |
| 130 | SDIO0_CCLK_OUT |
| 131 | SDIO0_CDATA1 |
| 132 | SDIO0_CDATA3 |
| 133 | SDIO0_CCMD |
| 134 | SDIO0_CDATA2 |
| 135 | SDIO0_CARD_PWR_EN_N_V3318U12 |
| 136 | EPHY0_RSTN |
| 137 | UART1_RXD_V3318U12 |
| 138 | UART1_TXD_V3318U12 |
| 139 | UART1_CTSN_V3318U12 |
| 140 | UART1_RTSN_V3318U12 |
| 141 | EPHY0_CLK |
| 142 | DVDD3318_UART1_2 |
| 143 | PWM_TO_0V6 |
| 144 | UPDATE_MODE_N |
| 145 | DVDD3318_SDIO1 |
| 146 | UART2_TXD |
| 147 | UART2_RXD |
| 148 | USB3_TXM1 |
| 149 | USB3_TXP1 |
| 150 | USB3_RXP1 |
| 151 | USB3_RXM1 |
| 152 | PCIE_TXM0 |
| 153 | PCIE_TXP0 |
| 154 | PCIE_RXM0 |
| 155 | PCIE_RXP0 |
| 156 | PCIE_REFCLKP |
| 157 | PCIE_REFCLKM |
| 158 | GND |
| 159 | USB_DP0 |
| 160 | USB_DM0 |
| 161 | GND |
| 162 | P_IRIS_CONTROL1_V3318U12 |
| 163 | WDG_RSTN_1V8 |
| 164 | DSI_D3N |
| 165 | DSI_D3P |
| 166 | DSI_D2N |
| 167 | DSI_D2P |
| 168 | DSI_CKN |
| 169 | DSI_CKP |
| 170 | DSI_D1N |
| 171 | DSI_D1P |
| 172 | DSI_D0N |
| 173 | DSI_D0P |
| 174 | AC_INL/P |
| 175 | AC_INR/N |
| 176 | HDMI_HOTPLUG |
| 177 | HDMI_SDA |
| 178 | HDMI_SCL |
| 179 | GND |
| 180 | AC_MICBIAS |
