LCB3576

SOC：RK3576/RK3576J

Storage：2+16GB/4+32GB/8+64GB/16+128GB

Size：60mm(L)*40mm(W)*4.2mm(H)

Product：The LCB3576 core module integrates a quad-core Cortex-A72 and a quad-core Cortex-A53 CPU, with peak frequencies up to 2.2 GHz, and includes a 6-TOPS NPU for efficient execution of multiple deep-learning frameworks and AI algorithms. It is also equipped with a Mali-G52 MC3 GPU that supports OpenGL ES, OpenCL, and Vulkan, meeting the demands of high-definition video processing and UI interaction.

Buying

Product
Downloads
Brochure
WIKI

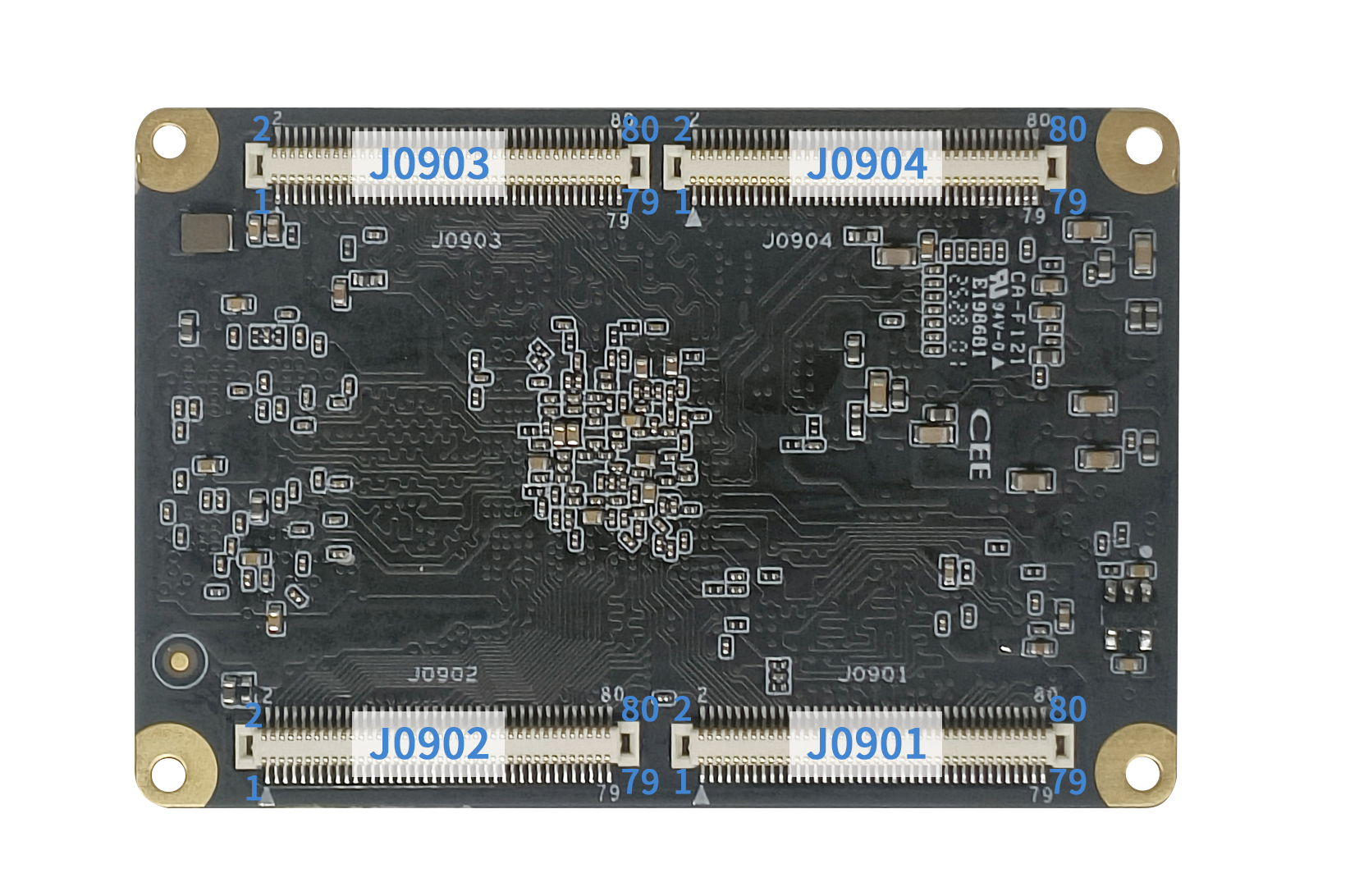

J0901
Pin Number	Pin Name	Voltage level
1	GPIO2_A4_d	VCCIO_SD_S0 (3V3/1V8)
2	SARADC_VIN7	VCCA_1V8_S0
3	GPIO2_A5_d	VCCIO_SD_S0 (3V3/1V8)
4	GPIO3_A1_d	VCCIO4_VCC (3V3/1V8)
5	GPIO2_A2_d	VCCIO_SD_S0 (3V3/1V8)
6	GPIO2_B3_d	VCCIO4_VCC (3V3/1V8)
7	GPIO2_A3_d	VCCIO_SD_S0 (3V3/1V8)
8	GPIO2_B5_d	VCCIO4_VCC (3V3/1V8)
9	GPIO2_A0_d	VCCIO_SD_S0 (3V3/1V8)
10	GPIO2_D6_d	VCCIO4_VCC (3V3/1V8)
11	GPIO2_A1_d	VCCIO_SD_S0 (3V3/1V8)
12	SARADC_VIN3	VCCA_1V8_S0
13	GND	0V
14	GPIO1_C6_d	VCCIO3 （3V3/1V8）
15	GPIO1_C7_d	VCCIO3 （3V3/1V8）
16	SARADC_VIN2	VCCA_1V8_S0
17	GPIO1_C3_u	VCCIO3 （3V3/1V8）
18	SARADC_VIN1/RECOVERY	VCCA_1V8_S0
19	GPIO1_C4_d	VCCIO3 （3V3/1V8）
20	SARADC_VIN0/BOOT	VCCA_1V8_S0
21	GPIO1_C5_d	VCCIO3 （3V3/1V8）
22	GND	0V
23	GPIO1_C1_d	VCCIO3 （3V3/1V8）
24	VCC_IO4_1833_IN	3V3/1V8
25	GPIO1_C0_d	VCCIO3 （3V3/1V8）
26	GND	0V
27	GPIO1_B7_d	VCCIO3 （3V3/1V8）
28	GPIO1_D3_d	VCCIO3 （3V3/1V8）
29	GPIO1_B6_d	VCCIO3 （3V3/1V8）
30	GPIO1_C2_u	VCCIO3 （3V3/1V8）
31	GPIO1_B4_d	VCCIO3 （3V3/1V8）
32	GPIO1_D2_d	VCCIO3 （3V3/1V8）
33	GPIO1_B5_d	VCCIO3 （3V3/1V8）
34	GPIO1_D0_d	VCCIO3 （3V3/1V8）
35	GND	0V
36	GPIO1_D4_d	VCCIO3 （3V3/1V8）
37	MIPI_DPHY_CSI3_RX_D0P	N/A
38	GPIO1_D5_d	VCCIO3 （3V3/1V8）
39	MIPI_DPHY_CSI3_RX_D0N	N/A
40	GPIO1_D1_d	VCCIO3 （3V3/1V8）
41	MIPI_DPHY_CSI3_RX_D1P	N/A
42	GND	0V
43	MIPI_DPHY_CSI3_RX_D1N	N/A
44	SARADC_VIN6	VCCA_1V8_S0
45	GND	0V
46	SARADC_VIN5	VCCA_1V8_S0
47	MIPI_DPHY_CSI3_RX_D2P	N/A
48	GND	0V
49	MIPI_DPHY_CSI3_RX_D2N	N/A
50	MIPI_DPHY_CSI3_RX_CLKP	N/A
51	MIPI_DPHY_CSI3_RX_D3P	N/A
52	MIPI_DPHY_CSI3_RX_CLKN	N/A
53	MIPI_DPHY_CSI3_RX_D3N	N/A
54	MIPI_DPHY_CSI4_RX_CLKN	N/A
55	GND	0V
56	MIPI_DPHY_CSI4_RX_CLKP	N/A
57	VCC_3V3_S3	3.3V/ (with pin 57,59 Total 2A)
58	GND	0V
59	VCC_3V3_S3	3.3V/ (with pin 57,59 Total 2A)
60	GPIO0_D0_d	VCC_3V3_S3
61	VCC_3V3_S0	3.3V/0.5A
62	GPIO0_C4_d	VCC_3V3_S3
63	GPIO0_B1_z	VCC_1V8_S3
64	GPIO0_C6_d	VCC_3V3_S3
65	GPIO0_A7_u	VCC_1V8_S3
66	GPIO0_C3_d	VCC_3V3_S3
67	GPIO0_B0_z	VCC_1V8_S3
68	GPIO0_D2_d	VCC_3V3_S3
69	GPIO0_A2_d	VCC_1V8_S3
70	GPIO0_B7_d	VCC_3V3_S3
71	VCC_1V8_S0	1.8V/0.5A
72	GPIO0_C0_d	VCC_3V3_S3
73	GND	0V
74	GND	0V
75	PCIE0_SOC_RXN	N/A
76	PCIE0_SOC_TXP	N/A
77	PCIE0_SOC_RXP	N/A
78	PCIE0_SOC_TXN	N/A
79	GND	0V
80	GND	0V
J0902
Pin Number	Pin Name	Voltage level
1	GPIO4_B5_d	VCC_1V8_S0
2	GND	0V
3	GPIO4_B4_d	VCC_1V8_S0
4	GPIO4_A4_d	VCC_1V8_S0
5	GPIO3_A6_d	VCCIO5_VCC (3V3/1V8)
6	GPIO4_B1_d	VCC_1V8_S0
7	GPIO3_A5_d	VCCIO5_VCC (3V3/1V8)
8	GPIO4_B2_d	VCC_1V8_S0
9	GPIO3_C2_d	VCCIO5_VCC (3V3/1V8)
10	GPIO4_B0_d	VCC_1V8_S0
11	GPIO3_C3_d	VCCIO5_VCC (3V3/1V8)
12	GPIO4_A6_d	VCC_1V8_S0
13	GPIO3_B4_d	VCCIO5_VCC (3V3/1V8)
14	GPIO4_A2_d	VCC_1V8_S0
15	GPIO3_B5_d	VCCIO5_VCC (3V3/1V8)
16	GPIO4_A3_d	VCC_1V8_S0
17	GPIO3_B3_d	VCCIO5_VCC (3V3/1V8)
18	GND	0V
19	GPIO3_B6_d	VCCIO5_VCC (3V3/1V8)
20	GPIO3_D7_d	VCCIO5_VCC (3V3/1V8)
21	GPIO3_D2_d	VCCIO5_VCC (3V3/1V8)
22	GPIO4_A1_d	VCCIO5_VCC (3V3/1V8)
23	GPIO3_D3_d	VCCIO5_VCC (3V3/1V8)
24	GND	0V
25	GPIO3_B1_d	VCCIO5_VCC (3V3/1V8)
26	GPIO4_A7_d	VCC_1V8_S0
27	GPIO3_B2_d	VCCIO5_VCC (3V3/1V8)
28	GPIO3_C6_d	VCCIO5_VCC (3V3/1V8)
29	GPIO3_A7_d	VCCIO5_VCC (3V3/1V8)
30	GPIO4_B3_d	VCC_1V8_S0
31	GPIO3_D1_d	VCCIO5_VCC (3V3/1V8)
32	GND	0V
33	GND	0V
34	GPIO3_C5_d	VCCIO5_VCC (3V3/1V8)
35	GPIO2_C3_d	VCCIO4_VCC (3V3/1V8)
36	GPIO3_C4_d	VCCIO5_VCC (3V3/1V8)
37	GPIO2_C4_d	VCCIO4_VCC (3V3/1V8)
38	GPIO3_C0_d	VCCIO5_VCC (3V3/1V8)
39	GPIO2_C7_d	VCCIO4_VCC (3V3/1V8)
40	GPIO3_D5_d	VCCIO5_VCC (3V3/1V8)
41	GPIO3_B0_d	VCCIO5_VCC (3V3/1V8)
42	GPIO3_D6_d	VCCIO5_VCC (3V3/1V8)
43	GPIO2_C6_d	VCCIO4_VCC (3V3/1V8)
44	GPIO3_C1_d	VCCIO5_VCC (3V3/1V8)
45	GPIO2_D0_d	VCCIO4_VCC (3V3/1V8)
46	GPIO3_B7_d	VCCIO5_VCC (3V3/1V8)
47	GPIO2_C5_d	VCCIO4_VCC (3V3/1V8)
48	GPIO3_D0_d	VCCIO5_VCC (3V3/1V8)
49	GND	0V
50	GPIO4_A0_d	VCCIO5_VCC (3V3/1V8)
51	GPIO3_C7_d	VCCIO5_VCC (3V3/1V8)
52	GPIO3_A4_d	VCCIO5_VCC (3V3/1V8)
53	GPIO4_A5_d	VCC_1V8_S0
54	GPIO3_D4_d	VCCIO5_VCC (3V3/1V8)
55	GPIO2_D5_d	VCCIO4_VCC (3V3/1V8)
56	VCC_IO5_1833_IN	1.8V or 3.3V（0.5A)
57	GND	0V
58	GPIO2_D7_d	VCCIO4_VCC (3V3/1V8)
59	GPIO2_C0_d	VCCIO4_VCC (3V3/1V8)
60	GND	0V
61	GPIO2_D2_d	VCCIO4_VCC (3V3/1V8)
62	GPIO2_D4_d	VCCIO4_VCC (3V3/1V8)
63	GPIO2_D3_d	VCCIO4_VCC (3V3/1V8)
64	GPIO2_C2_d	VCCIO4_VCC (3V3/1V8)
65	GPIO2_D1_d	VCCIO4_VCC (3V3/1V8)
66	GPIO2_C1_d	VCCIO4_VCC (3V3/1V8)
67	GND	0V
68	GND	0V
69	GPIO2_B7_d	VCCIO4_VCC (3V3/1V8)
70	GPIO3_A0_d	VCCIO4_VCC (3V3/1V8)
71	GPIO2_B6_d	VCCIO4_VCC (3V3/1V8)
72	GPIO2_B2_d	VCCIO4_VCC (3V3/1V8)
73	SARADC_VIN4	VCCA_1V8_S0
74	GPIO2_B4_d	VCCIO4_VCC (3V3/1V8)
75	GPIO3_A3_d	VCCIO4_VCC (3V3/1V8)
76	GPIO2_B0_d	VCCIO4_VCC (3V3/1V8)
77	GPIO2_A6_d	VCCIO4_VCC (3V3/1V8)
78	GPIO2_B1_d	VCCIO4_VCC (3V3/1V8)
79	GPIO3_A2_d	VCCIO4_VCC (3V3/1V8)
80	GPIO2_A7_d	VCCIO4_VCC (3V3/1V8)
J0903
Pin Number	Pin Name	Voltage level
1	GND	0V
2	GND	0V
3	VCCA_1V8_S0	1.8V(0.5A)
4	GPIO4_C5_d	VCC_3V3_S0
5	GPIO4_C0_d	VCC_3V3_S0
6	GPIO4_C1_d	VCC_3V3_S0
7	GPIO4_C4_d	VCC_3V3_S0
8	GPIO4_C3_d	VCC_3V3_S0
9	GPIO4_C7_d	VCC_3V3_S0
10	GPIO4_C2_d	VCC_3V3_S0
11	GPIO4_C6_d	VCC_3V3_S0
12	GND	0V
13	GPIO4_D0_d	VDDA_1V2_S0
14	UFS_RX_D1N	VCC_1V8_S3
15	GND	0V
16	UFS_RX_D1P	VCC_1V8_S3
17	GPIO4_D1_d	VDDA_1V2_S0
18	GND	0V
19	GND	0V
20	UFS_RX_D0N	VCC_1V8_S3
21	UFS_TX_D1P	VCC_1V8_S3
22	UFS_RX_D0P	VCC_1V8_S3
23	UFS_TX_D1N	VCC_1V8_S3
24	GND	0V
25	GND	0V
26	USB2_OTG0_DP	N/A
27	UFS_TX_D0P	VCC_1V8_S3
28	USB2_OTG0_DM	N/A
29	UFS_TX_D0N	VCC_1V8_S3
30	DP_TX_AUXP	N/A
31	GND	0V
32	DP_TX_AUXN	N/A
33	USB3_OTG0_SSRX1N	N/A
34	GND	0V
35	USB3_OTG0_SSRX1P	N/A
36	MIPI_DPHY_DSI_TX_D0N	N/A
37	USB3_OTG0_SSTX1P	N/A
38	MIPI_DPHY_DSI_TX_D0P	N/A
39	USB3_OTG0_SSTX1N	N/A
40	MIPI_DPHY_DSI_TX_D1N	N/A
41	GND	0V
42	MIPI_DPHY_DSI_TX_D1P	N/A
43	USB3_OTG0_SSRX2P	N/A
44	GND	0V
45	USB3_OTG0_SSRX2N	N/A
46	MIPI_DPHY_DSI_TX_CLKN	N/A
47	USB2_HOST1_DP	N/A
48	MIPI_DPHY_DSI_TX_CLKP	N/A
49	USB2_HOST1_DM	N/A
50	GND	0V
51	GND	0V
52	MIPI_DPHY_DSI_TX_D2N	N/A
53	USB3_OTG0_SSTX2N	N/A
54	MIPI_DPHY_DSI_TX_D2P	N/A
55	USB3_OTG0_SSTX2P	N/A
56	MIPI_DPHY_DSI_TX_D3N	N/A
57	GND	0V
58	MIPI_DPHY_DSI_TX_D3P	N/A
59	USB2_OTG1_ID	1.8V
60	GND	0V
61	USB2_OTG1_VBUSDET	3.3V
62	MIPI_DPHY_CSI0_RX_D0N	N/A
63	GND	0V
64	MIPI_DPHY_CSI0_RX_D0P	N/A
65	HDMI_TX_SBDN	N/A
66	MIPI_DPHY_CSI0_RX_D1N	N/A
67	HDMI_TX_SBDP	N/A
68	MIPI_DPHY_CSI0_RX_D1P	N/A
69	MIPI_DPHY_CSI2_RX_CLKP	N/A
70	GND	0V
71	MIPI_DPHY_CSI2_RX_CLKN	N/A
72	MIPI_DPHY_CSI0_RX_CLKN	N/A
73	GND	0V
74	MIPI_DPHY_CSI0_RX_CLKP	N/A
75	MIPI_DPHY_CSI1_RX_CLKP	N/A
76	GND	0V
77	MIPI_DPHY_CSI1_RX_CLKN	N/A
78	USB2_OTG0_VBUSDET	3.3V
79	GND	0V
80	USB2_OTG0_ID	1.8V
J0904
Pin Number	Pin Name	Voltage level
1	GPIO0_C5_d	VCC_3V3_S3
2	GND	0V
3	GPIO0_D3_d	VCC_3V3_S3
4	MIPI_DPHY_CSI0_RX_D2N	N/A
5	GPIO0_C7_d	VCC_3V3_S3
6	MIPI_DPHY_CSI0_RX_D2P	N/A
7	GND	0V
8	GND	0V
9	MIPI_DPHY_CSI1_RX_D3N	N/A
10	MIPI_DPHY_CSI0_RX_D3N	N/A
11	MIPI_DPHY_CSI1_RX_D3P	N/A
12	MIPI_DPHY_CSI0_RX_D3P	N/A
13	GND	0V
14	GND	0V
15	MIPI_DPHY_CSI1_RX_D2N	N/A
16	HDMI_TX_D3N	N/A
17	MIPI_DPHY_CSI1_RX_D2P	N/A
18	HDMI_TX_D3P	N/A
19	MIPI_DPHY_CSI1_RX_D1N	N/A
20	GND	0V
21	MIPI_DPHY_CSI1_RX_D1P	N/A
22	HDMI_TX_D0P	N/A
23	MIPI_DPHY_CSI1_RX_D0N	N/A
24	HDMI_TX_D0N	N/A
25	MIPI_DPHY_CSI1_RX_D0P	N/A
26	HDMI_TX_D1N	N/A
27	GND	0V
28	HDMI_TX_D1P	N/A
29	PCIE0_SOC_REFCLKP	N/A
30	HDMI_TX_D2P	N/A
31	PCIE0_SOC_REFCLKN	N/A
32	HDMI_TX_D2N	N/A
33	GND	0V
34	GND	0V
35	PCIE1_REFCLKP	N/A
36	PCIE1_TXN	N/A
37	PCIE1_REFCLKN	N/A
38	PCIE1_TXP	N/A
39	GND	0V
40	PCIE1_RXP	N/A
41	GPIO0_D4_u	VCC_3V3_S3
42	PCIE1_RXN	N/A
43	GPIO0_D5_u	VCC_3V3_S3
44	GND	0V
45	GND	0V
46	RESET_L	1.8V
47	VCCA_3V3_S0	3.3V(0.3A)
48	PMIC_EXT_EN_OUT	5.0V
49	GPIO0_C1_d	VCC_3V3_S3
50	DC_PWR_ON	1.8~3.3V
51	GPIO0_C2_d	VCC_3V3_S3
52	VCC_IO3_1833_IN	1.8V or 3.3V (0.5A)
53	GPIO0_B6_d	VCC_3V3_S3
54	PWRON_L	3.3V
55	GPIO0_B4_d	VCC_3V3_S3
56	VCC_1V8_S3	1.8V (with pin 56,58,60 Total 2A)
57	GPIO0_B5_d	VCC_3V3_S3
58	VCC_1V8_S3	1.8V (with pin 56,58,60 Total 2A)
59	GPIO0_D1_d	VCC_3V3_S3
60	VCC_1V8_S3	1.8V (with pin 56,58,60 Total 2A)
61	GPIO0_A5_d	VCC_1V8_S3
62	GND	0V
63	GPIO0_A0_d	VCC_1V8_S3
64	GND	0V
65	GND	0V
66	VCCIO_SD_S0	3.3V or 1.8V (0.3A)
67	GND	0V
68	GND	0V
69	GND	0V
70	VCC5V0_SYS_S5	5.0V (with pin 70,72~79,Total 4A)
71	GND	0V
72	VCC5V0_SYS_S5	5.0V (with pin 70,72~79,Total 4A)
73	VCC5V0_SYS_S5	5.0V (with pin 70,72~79,Total 4A)
74	VCC5V0_SYS_S5	5.0V (with pin 70,72~79,Total 4A)
75	VCC5V0_SYS_S5	5.0V (with pin 70,72~79,Total 4A)
76	VCC5V0_SYS_S5	5.0V (with pin 70,72~79,Total 4A)
77	VCC5V0_SYS_S5	5.0V (with pin 70,72~79,Total 4A)
78	VCC5V0_SYS_S5	5.0V (with pin 70,72~79,Total 4A)
79	VCC5V0_SYS_S5	5.0V (with pin 70,72~79,Total 4A)
80	GND	0V
