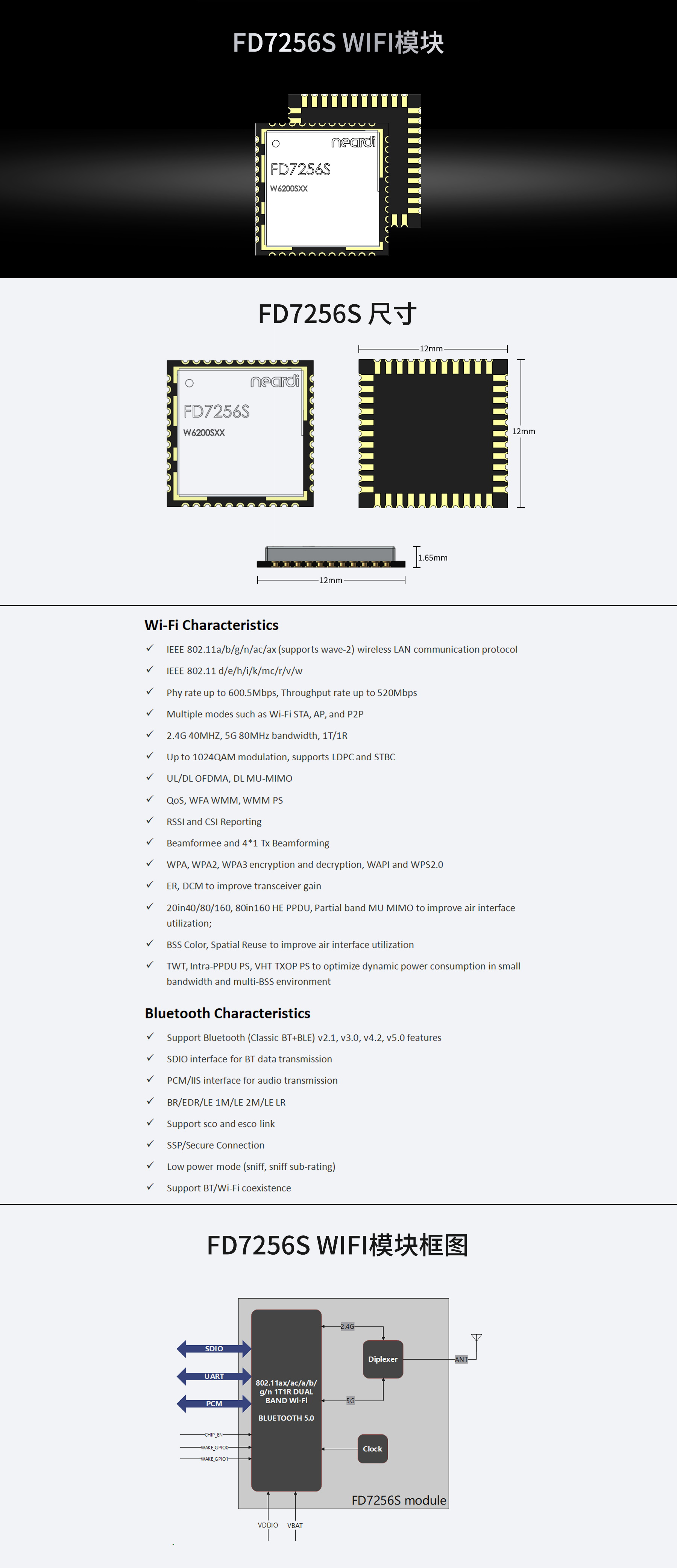

FD7256S
接口：SDIO
WIFI/藍牙：WIFI 6/6E ; BT 5.3 頻段：2.4G ; 5G
天線：2T2R
2.4G/5G物理層最大傳輸速率：572.4Mbps/1.2Gbps
帶寬：80M
吞吐速率：520Mbps
認證：SRRC/ROHS/CE/FCC
尺寸：15mm*13mm
- 產品詳情
- 支持與下載
- 產品手冊
- WIKI教程
| Product Name | FD7256S |
| Product description | 802.11ax/ac/a/b/g/n 1T1R dual band Wi-Fi and Bluetooth 5.0 comb module |
| Dimension | 12.0(±0.1)mm*12.0(±0.1)mm*1.65(±0.2)mm |
| Power supply | VBAT：3.0~3.6V；VDDIO：1.62V~1.92V/3.0V~3.6V |
| Host interface | SDIO3.0 + UART + PCM |
| Footprint | LCC 44pin |
| Operating temperature | -30°C to 70°C |
| Operating humidity | 10% to 90% (Non-Condensing) |
| Storage temperature | - 40°C to 85°C |
| Pin Number | Pin Name | Pin Type | Pin Description |
| 1 | GND | G | Ground connections |
| 2 | WL_BT_ANT | RF | Wi-Fi & BT antenna I/O port |
| 3 | GND | G | Ground connections |
| 4 | NC | - | Floating (Don’t connected to ground) |
| 5 | NC | - | Floating (Don’t connected to ground) |
| 6 | NC | - | Floating (Don’t connected to ground) |
| 7 | NC | - | Floating (Don’t connected to ground) |
| 8 | GND | - | Ground connections |
| 9 | VBAT | P | Main power voltage source input |
| 10 | NC | - | Floating (Don’t connected to ground) |
| 11 | NC | - | Floating (Don’t connected to ground) |
| 12 | CHIP_EN | I | Module enable signal |
| 13 | WL/HOST_WAKE_GIPO0 | I/O | Wake up signal with auto negotiation |
| 14 | SDIO_DATA_2 | I/O | SDIO data line 2 |
| 15 | SDIO_DATA_3 | I/O | SDIO data line 3 |
| 16 | SDIO_DATA_CMD | I/O | SDIO command line |
| 17 | SDIO_DATA_CLK | I/O | SDIO clock line |
| 18 | SDIO_DATA_0 | I/O | SDIO data line 0 |
| 19 | SDIO_DATA_1 | I/O | SDIO data line 1 |
| 20 | GND | G | Ground connections |
| 21 | NC | - | Floating (Don’t connected to ground) |
| 22 | VDDIO | P | I/O Voltage supply input |
| 23 | NC | - | Floating (Don’t connected to ground) |
| 24 | NC | - | Floating (Don’t connected to ground) |
| 25 | PCM_OUT | O | PCM Data output |
| 26 | PCM_CLK | I/O | PCM clock |
| 27 | PCM_IN | I | PCM data input |
| 28 | PCM_SYNC | I/O | PCM sync signal |
| 29 | NC | - | Floating (Don’t connected to ground) |
| 30 | NC | - | Floating (Don’t connected to ground) |
| 31 | GND | G | Ground connections |
| 32 | NC | - | Floating (Don’t connected to ground) |
| 33 | GND | G | Ground connections |
| 34 | WL/HOST_WAKE_GIPO1 | I/O | Wake up signal with auto negotiation |
| 35 | NC | - | Floating (Don’t connected to ground) |
| 36 | GND | G | Ground connections |
| 37 | NC | - | Floating (Don’t connected to ground) |
| 38 | NC | - | Floating (Don’t connected to ground) |
| 39 | NC | - | Floating (Don’t connected to ground) |
| 40 | NC | - | Floating (Don’t connected to ground) |
| 41 | UART_RTS_N | I/O | UART DCE request send signal |
| 42 | UART_TXD | I/O | UART TX signal |
| 43 | UART_RXD | I/O | UART RX signal |
| 44 | UART_CTS_N | I/O | UART DEC clear send signal |
