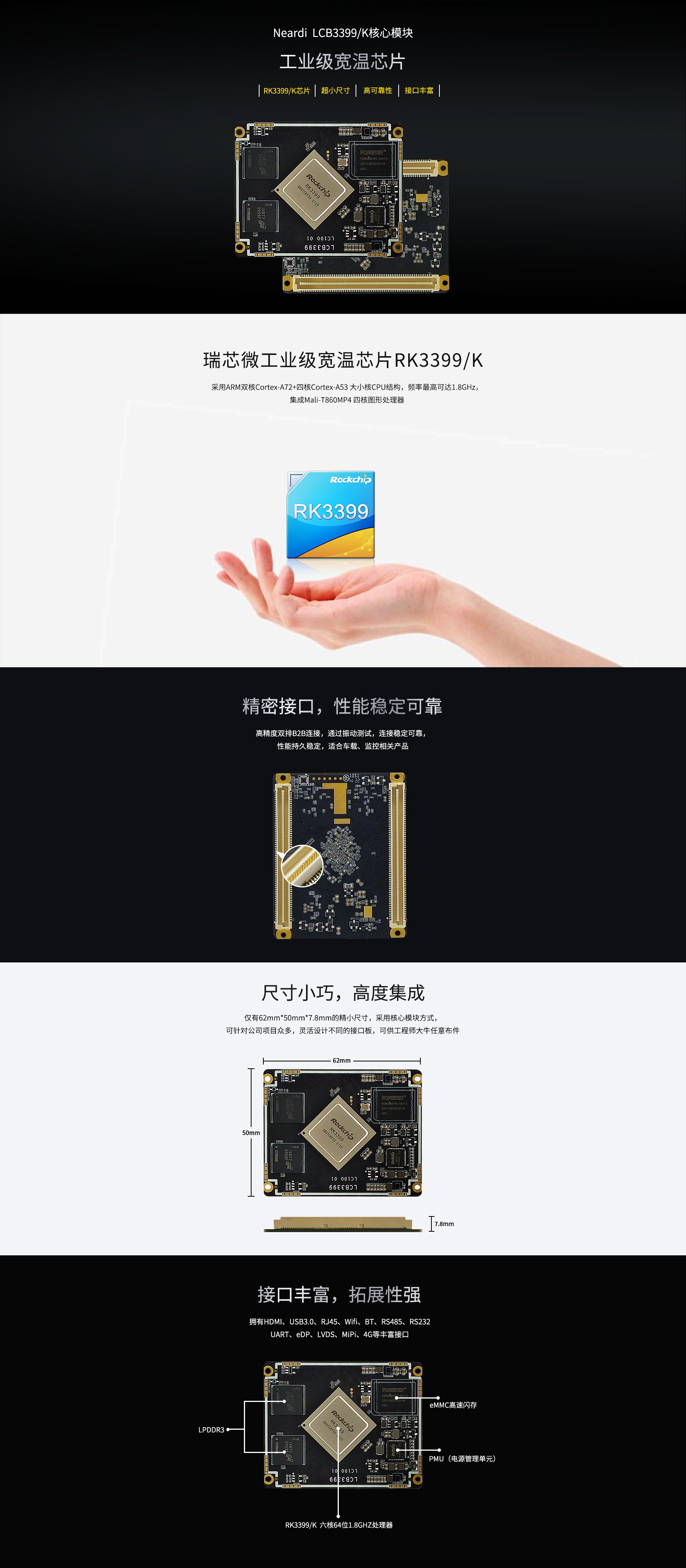

LCB3399
SOC :RK3399
存儲組合 :2+16 GB / 4+16 GB/ 4+64 GB
產品尺寸 :62mm(L)*50mm(W)*7.8mm(H)
產品介紹 :核心模塊與底板的連接采用兩顆 tyco/AMP 的 0.8mm pitch 雙排120Pin 板對板連接器，并通過 4 顆 M2 的螺絲固定，穩定可靠、易于安裝和維護
- 產品詳情
- 支持與下載
- 產品手冊
- WIKI教程
| 基本參數 | |
| SOC | RK3399,雙Cortex-A72+四Cortex-A53 大小核CPU結構，主頻最高1.8GHz |
| GPU | Mali-T860 GPU，支持OpenGL ES1.1/2.0/3.0/3.1, OpenCL；支持AFBC |
| VPU | 支持4K VP9 and 4K 10bits H265/H264 視頻解碼，高達60fps |
| 1080P 多格式視頻解碼 (VC-1, MPEG-1/2/4, VP8) | |
| 1080P 視頻編碼，支持H.264，VP8格式 | |
| DDR | LPDDR4，可選2GB/4GB(Optional) |
| eMMC | eMMC 5.1，可選16GB/64GB (Optional) |
| PMU | RK808 |
| 系統 | Android / Ubuntu / Buildroot |
| 硬件參數 | |
| Camera Interface | Two ISP built-in |
| Dual MIPI-CSI 4 Lane of 1.5 Gbps/Lane | |
| ITU-R BT 601/656 compliant | |
| Maximum input resolution of one ISP is 14M pixels | |
| Display Interface | Two VOP embedded |
| Dual MIPI-DSI 4 Lane of 1.5 Gbps/Lane up to 2560x1600@60fps | |
| eDP1.3 4 Lane of 2.7/1.62 Gbps/lane | |
| DP1.2 4 Lane with HDCP2.2 up to 4kx2k at 60Hz resolution | |
| HDMI2.0 3 Lane with HDCP2.2 | |
| USB Interface | OTG*1，HOST*2，TYPE-C*2 |
| TYPE-C Interface | Dual Type-C PHY with Type-C V1.1 and USB PD2.0 |
| Attach/detach detection and signaling as DFP, UFP and DRP | |
| Support USB3.0 Type-C and DisplayPort 1.2 Alt Mode | |
| Up to 5Gbps data rate for USB3.0 | |
| Up to 5.4Gbps (HBR2) data rate for DP1.2 | |
| Audio Interface | Two I2S/PCM built-in n up to 8 channels TX and 8 channels RX |
| SPDIF supported | |
| Audio resolution from 16bits to 32bits | |
| Sample rate up to 192KHz | |
| Provides master and slave work mode, software configurable | |
| Support 3 I2S formats (normal, left-justified, right-justified) | |
| Support 4 PCM formats (early, late1, late2, late3) | |
| Support two 16-bit audio data store together in one 32-bit wide location | |
| Support 16, 20, 24 bits audio data transfer in linear PCM mode | |
| Connectivity | Compatible with SDIO 3.0 protocol |
| GMAC 10/100/1000M Ethernet Controller | |
| Six on-chip SPI controllers | |
| Five on-chip UART controllers inside | |
| Eight on-chip I2C controllers | |
| Five groups of GPIO (GPIO0~GPIO4), totally have 100+ GPIOs | |
| Five-channel single-ended 10-bit SAR-ADC up to 1MS/s sampling rate | |
| 其他參數 | |
| Operating temperature | 企業級：-20℃~ 70℃ |
| 工業級：-40℃~ 85℃ | |
| PCB interface | B2B(240 Pin 0.8mm Pitch) |
| PCB size | L* W *H(mm)：62 *50 * 7.8（PCB 板厚1.2mm） |
-
