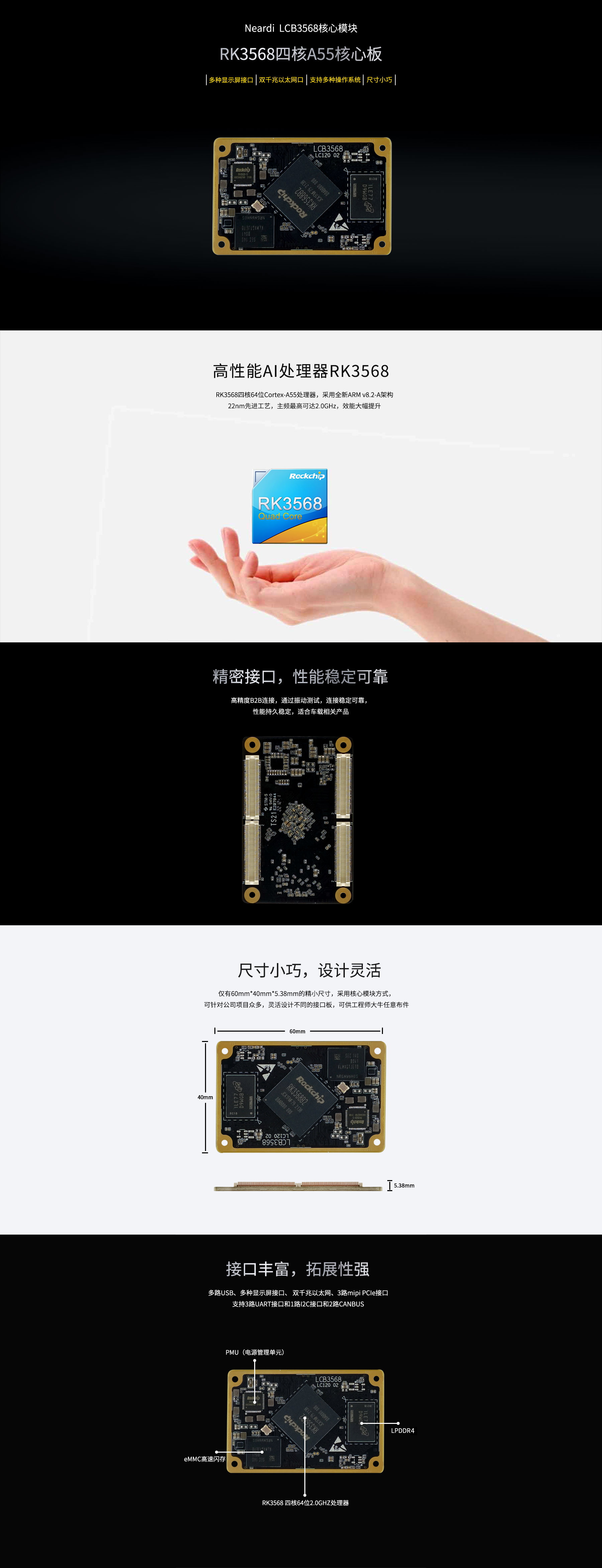

LCB3568/J
SOC :RK3568
存儲組合 :2+16 GB / 4+16 GB/ 8+32 GB
產品尺寸 :60mm(L)*40mm(W)*7.8mm(H)
產品介紹 :核心模塊與底板的連接采用四顆雙槽0.5mm pitch的80Pin板對板連接器，并通過4顆M2的螺絲固定，穩定可靠、易于安裝和維護。
| 基本參數 | |
| SOC | RK3568/RK3568J，22nm，四核64位Cortex-A55，主頻最高2.0GHz |
| GPU | ARM G52 2EE, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, high quality 2D Graphics Engine build in |
| NPU | up to 1 TOPS; INT8/INT16/FP16/BFP16 MAC hybrid operation supported；TensorFlow, TF-lite, Pytorch, Caffe, ONNX, MXNet, Keras, Darknet deep-learning frameworks supported |
| VPU | 4K VP9 and 4K H265 up to 60fps video decoding |
| 1080P up to 100fps H265/H264 video encoding | |
| 8M ISP with HDR | |
| DDR | LPDDR4/LPDDR4X，可選1GB/2GB/4GB/8GB(Optional) |
| eMMC | eMMC 5.1，可選8GB/16GB/32GB/64GB/128GB(Optional) |
| 系統 | Android / Ubuntu / Buildroot / Debian |
| 硬件參數 | |
| Camera Interface | Compatible with the MIPI Alliance Interface specification v1.2 |
| Up to 4 data lanes, 2.5Gbps maximum data rate per lane | |
| One interface with 1 clock lane and 4 data lanes | |
| Two interface, each with 1 clock lane and 2 data lanes | |
| Support up to 16bit DVP interface (digital parallel input) | |
| Support ISP block(Image Signal Processor) | |
| Display Interface | RGB/ BT656/BT1120/ MIPI_DSI_V1.2/ LVDS/ HDMI2.0/Edp1.3/ EBC |
| Support three simultaneous displays | |
| HDR10/HDR HLG/ HDR2SDR/SDR2HDR | |
| 3D-LUT/P2I/CSC/BCSH/DITHER/CABC/GAMMA/COLORBAR | |
| USB Interface | 1 x USB3.0 HOST, 1 x USB3.0 OTG, 2 x USB2.0 HOST |
| PCIe3.0 PHY Interface | Support PCIe3.1(8Gbps) protocol and backward compatible with the PCIe2.1 and PCIe1.1 protocol |
| Support two lane | |
| Support two PCIe controller with x1 mode or one PCIe controller with x2 mode | |
| Dual operation mode: Root Complex(RC)and End Point(EP) | |
| Multi-PHY Interface | Support three multi-PHYs with PCIe2.1/SATA3.0/USB3.0/QSGMII controller |
| USB3 Host controller + USB3 OTG controller | |
| PCIe2.1 controller / three SATA controller | |
| Audio Interface | I2S0 with 8 channel TX and RX |
| I2S1 with 8 channel TX and RX | |
| I2S2/I2S3 with 2 channel TX and RX | |
| PDM with 8channel | |
| TDM supports up to 8 channels for TX and 8 channels RX path | |
| Connectivity | Compatible with SDIO 3.0 protocol |
| GMAC 10/100/1000M Ethernet Controller | |
| Four on-chip SPI controllers | |
| Ten on-chip UART controllers inside | |
| Six on-chip I2C controllers | |
| Smart Card with ISO-7816 | |
| Sixteen on-chip PWMs(PWM0~PWM15) with interrupt-based operation | |
| Multiple groups of GPIO | |
| 8 single-ended input channels SARADC with 10bits resolution up to 1MS/s sampling rate | |
| 其他參數 | |
| Operating temperature | 企業級：-20℃~ 70℃ |
| 工業級：-40℃~ 85℃ | |
| PCB interface | B2B，320Pin |
| PCB layers | 10 layers |
| PCB size | L* W *H(mm)：60 *40 * 7.8（PCB 板厚1.6mm） |
