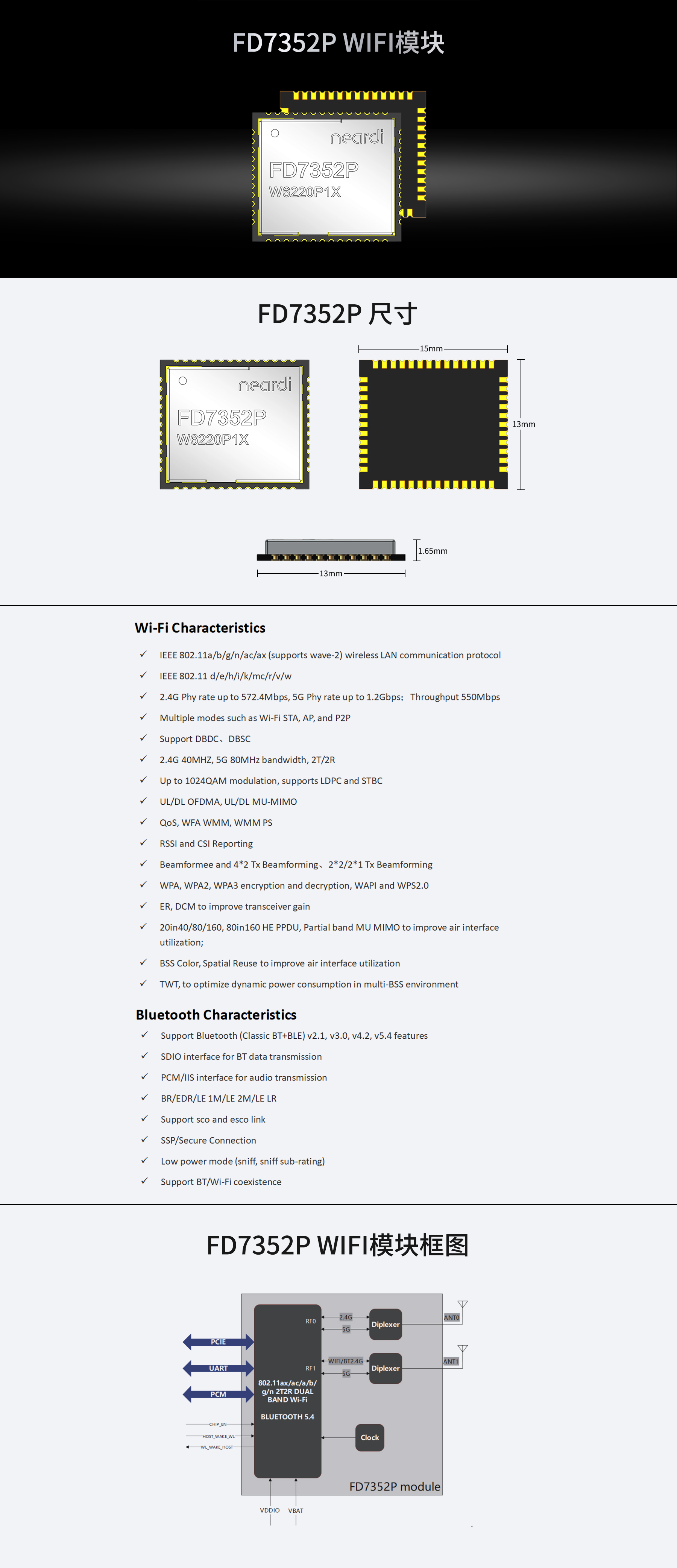

FD7352P

接口：PCIE

WIFI/藍牙：WIFI 6/6E ; BT 5.3 頻段：2.4G ; 5G

天線：2T2R

2.4G/5G物理層最大傳輸速率：572.4Mbps/1.2Gbps

帶寬：80M

吞吐速率：1Gbps

認證：SRRC/ROHS/CE/FCC

尺寸：15mm*13mm

立即購買

產品詳情
支持與下載
產品手冊
WIKI教程

Product Name	FD7352P
Product description	802.11ax/ac/a/b/g/n 2T2R dual band Wi-Fi and Bluetooth 5.4 comb module
Dimension	15.0(±0.1) mm13.0(±0.1) mm1.65(±0.2) mm
Power supply	VBAT：3.0~3.6V；VDDIO：1.62V~1.92V/3.0V~3.6V
Host interface	PCIE2.0 + UART + PCM
Footprint	LCC 50pin
Operating temperature	-30°C to 70°C
Operating humidity	10% to 90% (Non-Condensing)
Storage temperature	- 40°C to 85°C
Pin Number	Pin Name	Pin Type	Pin Description
1	GND	G	Ground connections
2	WL_S1/BT	RF	Wi-Fi & BT antenna I/O port
3	GND	G	Ground connections
4	GND	G	Ground connections
5	GND	G	Ground connections
6	GND	G	Ground connections
7	GND	G	Ground connections
8	GND	G	Ground connections
9	WL_S0	RF	Wi-Fi antenna I/O port
10	GND	G	Ground connections
11	GND	G	Ground connections
12	NC	-	Floating (Don’t connected to ground)
13	NC	-	Floating (Don’t connected to ground)
14	NC	-	Floating (Don’t connected to ground)
15	CHIP_EN	I	Module enable signal
16	NC	-	Floating (Don’t connected to ground)
17	NC/U1TXD	-	Floating (Don’t connected to ground)
18	NC/ U1RXD	-	Floating (Don’t connected to ground)
19	PCM_OUT	O	PCM Data output
20	PCM_IN	I	PCM data input
21	PCM_SYNC	I/O	PCM sync signal
22	PCM_CLK	I/O	PCM clock
23	GND	G	Ground connections
24	PE_WAKE_N	I/O	PCIE wake-up signal
25	NC	-	Floating (Don’t connected to ground)
26	NC	-	Floating (Don’t connected to ground)
27	GND	G	Ground connections
28	NC	-	Floating (Don’t connected to ground)
29	NC	-	Floating (Don’t connected to ground)
30	GND	G	Ground connections
31	NC	-	Floating (Don’t connected to ground)
32	GND	G	Ground connections
33	REFCLKP	I	PCIe differential clock input-Positive
34	VDDIO	P	I/O Voltage supply input
35	REFCLKN	I	PCIe differential clock input-Negative
36	VBAT	P	Main power voltage source input
37	PE_CLKREQ_N	I/O	PCIe clock request
38	NC	-	Floating (Don’t connected to ground)
39	GND	G	Ground connections
40	UART_TXD	I/O	UART TX signal
41	UART_RXD	I/O	UART RX signal
42	UART_RTS	I/O	UART DCE request to send signal
43	UART_CTS	I/O	UART DEC clear to send signal
44	PCIE_RX_N	I	PCIe receive data-Negative
45	PCIE_RX_P	I	PCIe receive data-Positive
46	PCIE_TX_N	O	PCIe transmit data-Negative
47	PCIE_TX_P	O	PCIe transmit data-Postive
48	PE_RST_N	I	PCIe host indication to reset the device
49	HOST_WAKE_WL	I/O	Wake up signal with auto negotiation
50	WL_WAKE_HOST	I/O	Wake up signal with auto negotiation
