LPA3403V100
SOC：Hi3403V100
存儲組合：4+16GB/4+32GB/8+64GB
尺寸：195mm(L)*104mm(W)*36mm(H)
產品描述：LPA3403，提供12V3A電源輸入，1路1000M以太網接口，支持穩定的網絡連接。1路HDMI接口，支持4K60fps視頻輸出，1路MIC和1路LINE滿足音頻采集和播放需求。1路USB2.0和1路USB3.0，提供靈活的數據傳輸和設備擴展。板載1路mini-PCIe，支持RK1808,3TopsNPU算力擴展。支持WIFI6，BT5.4，提供高速無線連接。3路UART和1路RS485以及GPIO等通訊串口，滿足多種外設連接和工業應用。

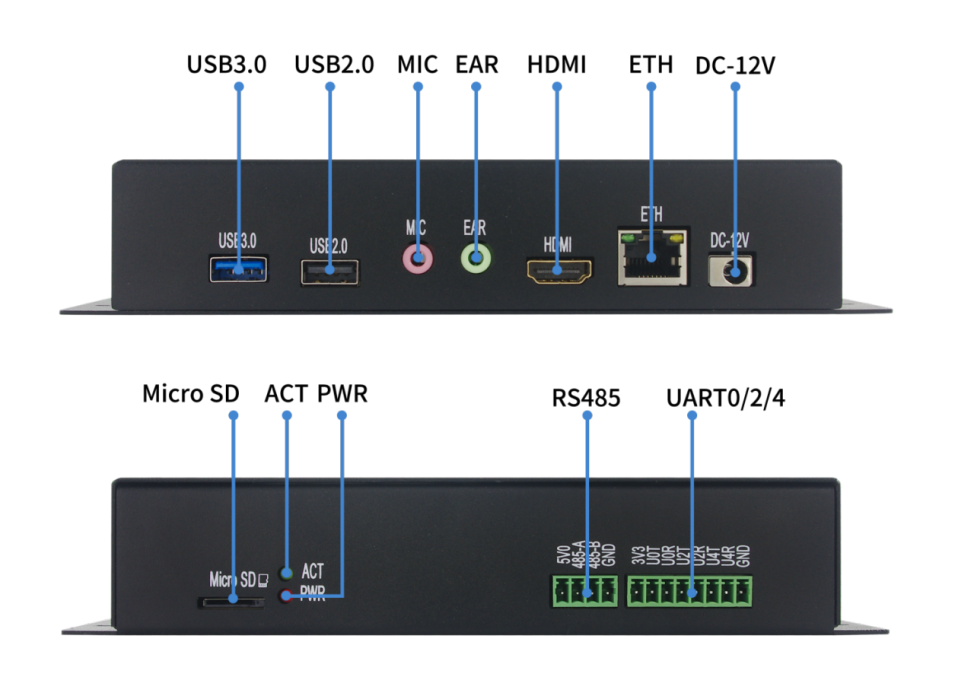

| Part Name | Part Specifications | Part Description |
| USB3.0 | Type-A USB3.0 | USB3.0 |
| USB2.0 | Type-A USB2.0 | USB2.0 |
| MIC | φ3.5mm 3-L Jack | Micphone In |
| EAR | φ3.5mm 3-L Jack | L/R audio out |
| HDMI | Type-A HDMI connector | HDMI2.0 TX up to 7680x4320@60Hz |
| ETH | Gigabit Ethernet | 10/100/1000-Mbps data transfer rates |
| DC-12V | DC 5.5*2.1mm | Main power supply, DC12V – 3A |
| Micro SD | Push-Push Micro SD socket | Micro SD Card |
| ACT | Green LED | Diy status indicate LED |
| PWR | Red LED | Power status indicate LED |
| RS485 | 3.81mm pitch 4Pin Connector | RS485 Bus signals |
| UART 0/2/4 | 3.81mm 8pin wafer | 1.8V UART-TTL signals |
-
