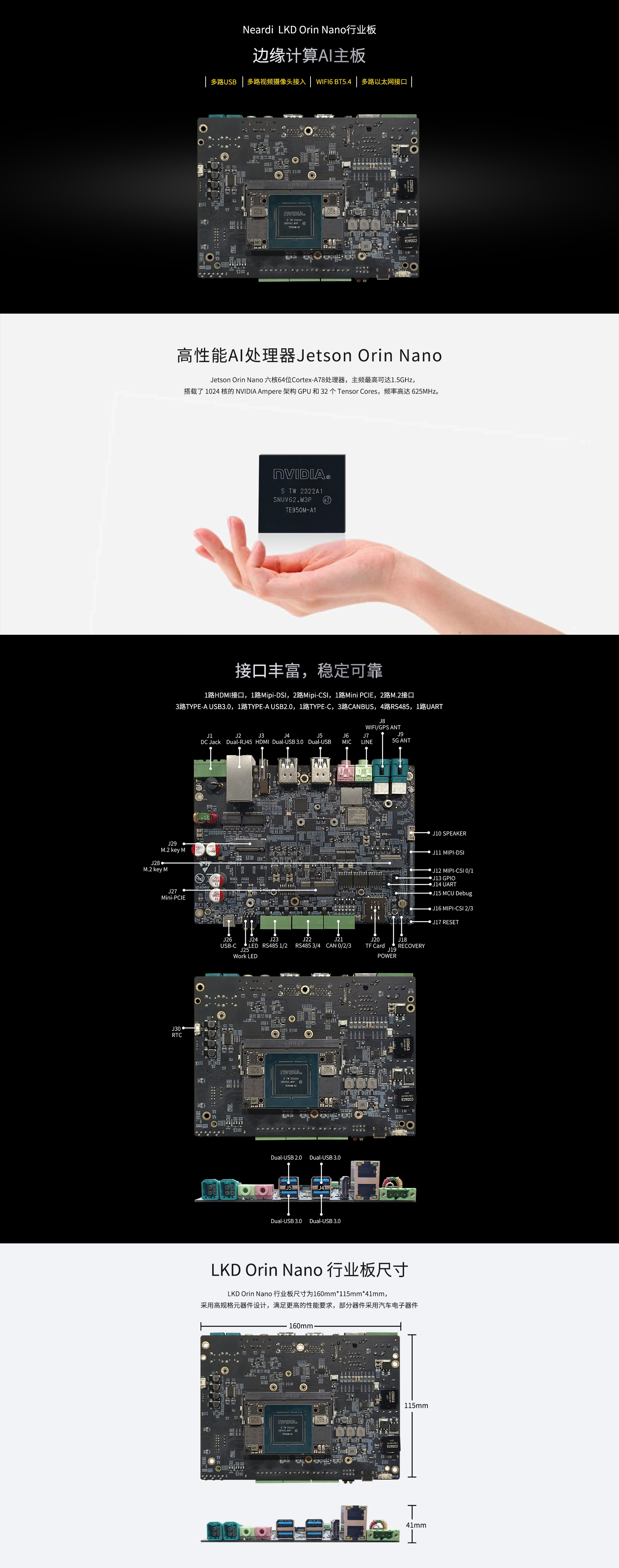

LKD Orin Nano
SOC：Jetson Orin Nano
存儲組合：Orin Nano 4GB / 8GB
產品尺寸：160mm(L)*115mm(W)*41mm(H)
產品介紹：LKD Orin Nano搭載Jetson Orin NX模塊，高性能的AI計算能力，高達100Tops.基于 NVIDIA Ampere 架構的 GPU，擁有高達 1024 個 CUDA 核心和 32 個 Tensor 核心。集成了下一代深度學習加速器（DLA）和計算機視覺加速器（PVA），提供了強大的 AI 推理和圖像處理能力。
| Part reference | Part Name | Part Specifications | Port Description |
| J1 | DC jack | 5.08mm pitch 3pin | Main power supply, DC9-36V |
| J2 | Dual-RJ45 | Gigabit Ethernet | 10/100/1000-Mbps data transfer rates |
| J3 | HDMI | Type-A HDMI connector | HDMI2.0 TX up to 7680x4320@60Hz |
| J4 | Dual-USB3.0 | Type-A USB3.0 | USB3.0 |
| J5 | Dual-USB | Type-A USB3.0/USB2.0 | USB3.0/USB2.0 |
| J6 | MIC | φ3.5mm 3-L Jack | Micphone In |
| J7 | LINE | φ3.5mm 3-L Jack | L/R audio out |
| J8 | WIFI/GPS ANT | Fakra 4pin | Antenna1 for WiFi/BT/GPS |
| J9 | 5G ANT | Fakra 4pin | Antenna1 for 5G |
| J10 | Speaker | PH2.0mm 4pin wafer | Dual channel audio Output for Speaker |
| J11 | MIPI-DSI | 0.5mm Pitch 30Pin FPC connector | MIPI-DSI 2lane signals for LCM |
| J12 | MIPI-CSI 0/1 | 30pin 0.5mm pitch FPC connector | MIPI-CSI 4lane or 2*2Lane for external cameras |
| J13 | GPIO | 2.0mm 2*5pin wafer | GPIO |
| J14 | UART | 2.0mm Pitch 4Pin header | UART signals |
| J15 | Power ON Mode | 2.0mm Pitch 2*2Pin header | 1-2: Auto PowerON/3-4:Key PowerOn |
| J16 | MIPI-CSI 2/3 | 30pin 0.5mm pitch FPC connector | MIPI-CSI 4lane or 2*2Lane for external cameras |
| J17 | Reset | push-button | Key for system reset |
| J18 | Recovery | push-button | Key for system recovery or other function |
| J19 | Power | push-button | Key for system power |
| J20 | MIcro SIM | Push-Push SIM socket | SIM Card |
| J21 | CAN 0/2/3 | 3.5mm 6pin wafer | CAN signals |
| J22 | RS485 3/4 | 3.5mm 6pin wafer | RS485 signals |
| J23 | RS485 1/2 | 3.5mm 6pin wafer | RS485 signals |
| J24 | LED | Red and Green LEDs | Power status indicate |
| J25 | work LED | Green led *2 | Work status and 3G/4G Module Status Indicator |
| J26 | USB TYPE-C | Type-C Socket | Type-C with USB3.0 or Display port / Recovery Port |
| J27 | Mini-PCIe | Mini-PCIe 52pin socket | For 2G/3G/4G/5G LTE module used |
| J28 | M.2 M-key 2242 | Standard M.2 M-key connector | For 2G/3G/4G/5G LTE module used |
| J29 | M.2 M-key 2242 | Standard M.2 M-key connector | M.2 NGFF ( M-KEY ) with PCIE V3.0*4Lane |
| J30 | RTC | 1.25mm Pitch 2Pin header | RTC battery power input 3.0V |
