LPD Orin Nano
SOC：Jetson Orin Nano
存儲組合：Orin Nano 4GB / 8GB
產品尺寸：200mm(L)*120mm(W)*82.2mm(H)
產品介紹：LPD Orin Nano具備多樣化接口，提供9~90V/3A寬壓輸入，3路USB3.0，1路USB2.0接口提供靈活的數據傳輸和設備擴展，1路TYPE-C Recovery接口。2路1000M以太網接口，支持穩定的網絡連接。1路HDMI接口，支持4K60fps視頻輸出，1路MIC和1路Line輸出滿足音頻采集和播放需求。板載1路mini-PCIe接口，2路M.2接口，可擴展連接4G/5G模塊，擴展外接NVMe協議SSD。板載WIFI模塊，支持WIFI6，BT5.4，提供高速無線連接。支持3路CANBUS、4路RS485等通訊模塊接口。
- 產品詳情
- 支持與下載
- 產品手冊
- WIKI教程

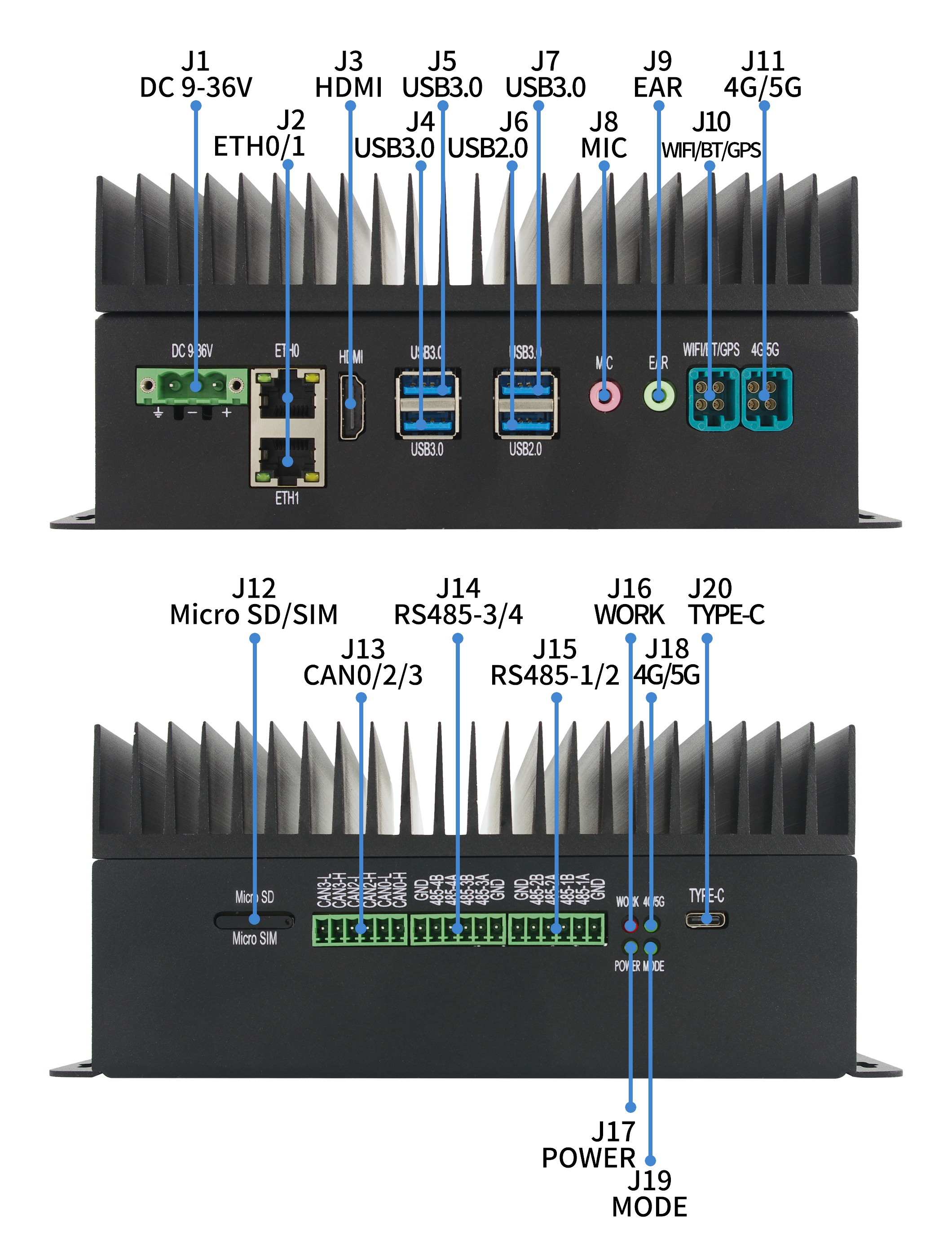

| Part reference | Part Name | Part Specifications | Port Description |
| J1 | DC 9-36V | 5.08mm pitch 3pin | Main power supply, DC9-36V |
| J2 | ETH0/1 | Gigabit Ethernet | 10/100/1000-Mbps data transfer rates |
| J3 | HDMI | Type-A HDMI connector | HDMI2.0 TX up to 7680x4320@60Hz |
| J4 | USB3.0 | Type-A USB3.0 | USB3.0 |
| J5 | USB3.0 | Type-A USB3.0 | USB3.0 |
| J6 | USB2.0 | Type-A USB2.0 | USB2.0 |
| J7 | USB3.0 | Type-A USB3.0 | USB3.0 |
| J8 | MIC | φ3.5mm 3-L Jack | Micphone In |
| J9 | LINE | φ3.5mm 3-L Jack | L/R audio out |
| J10 | WIFI/GPS ANT | Fakra 4pin | Antenna1 for WiFi/BT/GPS |
| J11 | 5G ANT | Fakra 4pin | Antenna1 for 5G |
| J12 | MIcro SD/SIM | Push-Push SD and SIM socket | SD and SIM Card |
| J13 | CAN 0/2/3 | 3.5mm 6pin wafer | CAN signals |
| J14 | RS485 3/4 | 3.5mm 6pin wafer | RS485 signals |
| J15 | RS485 1/2 | 3.5mm 6pin wafer | RS485 signals |
| J16 | work LED | Red led | Work status and 3G/4G Module Status Indicator |
| J17 | Power LED | Green Led | Power status indicate |
| J18 | Mode LED | Green LED | Function definition indicator |
| J19 | 4G/5G LED | Green LED | 4G/5G Module Status Indicator |
| J20 | USB TYPE-C | Type-C Socket | Type-C with USB3.0 or Display port / Recovery Port |
