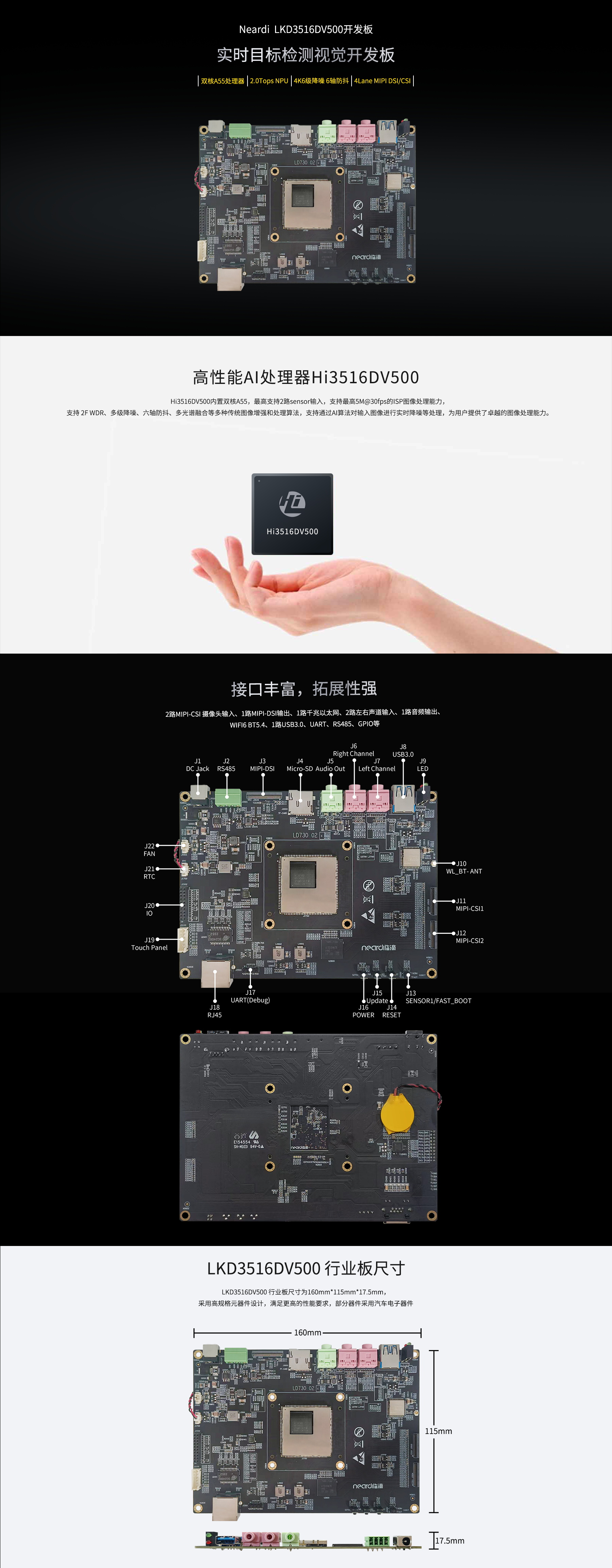

LKD3516DV500
SOC：Hi3516DV500
存儲組合：1+8GB/2+16GB
產品尺寸：160mm(L)*115mm(W)*17.5mm(H)
產品介紹：LKD3516DV500，提供12V3A電源輸入，1路1000M以太網接口，支持穩定的網絡連接。2路左右聲道輸入和1路音頻輸出滿足音頻采集和播放需求。1路USB3.0提供靈活的數據傳輸和設備擴展。2路MIPI-CSI攝像頭輸入，支持高清攝像頭連接。1路MIPI-DSI用于連接顯示設備，1路Touch Panel通過觸摸屏幕直接與設備交互。支持WIFI6，BT5.4，提供高速無線連接。UART,RS485,GPIO等通訊串口，滿足多種外設連接和工業應用。
| Part reference | Part Name | Part Specifications | Part Description |
| J1 | DC Jack | DC 5.5*2.0mm | Main power supply, DC12V/3A |
| J2 | RS485 | 3.5mm 4pin wafer，KF2EDGR-3.5-4P | RS485 signals |
| J3 | MIPI-DSI | 0.5mm Pitch 40Pin FPC connector，FH34SRJ-40S-0.5SH(50) | mipi dsi 4-lane signals for LCM |
| J4 | Micro-SD | Push-Push Micro SD socket | Micro SD Card |
| J5 | Audio Out | φ3.5mm 3-L Jack | L/R audio out |
| J6 | Right Channel | φ3.5mm 3-L Jack | Right Channel Input |
| J7 | Left Channel | φ3.5mm 3-L Jack | Left Channel Input |
| J8 | USB3.0 | Type-A USB3.0 | USB3.0 |
| J9 | LED | Red and Green LEDs | Power status indicate LED and GPIO LED |
| J10 | WL_BT-ANT | I-PXE | WIFI&BT ANT |
| J11 | MIPI-CSI 1 | 0.5mm Pitch 30Pin FPC connector，FH34SRJ-30S-0.5SH(50) | mipi csi 4-lane signals for camera |
| J12 | MIPI-CSI 2 | 0.5mm Pitch 30Pin FPC connector，FH34SRJ-30S-0.5SH(50) | mipi csi 4-lane signals for camera |
| J13 | SENSOR1/FAST_BOOT | 2.0mm 2X2Pin header | SENSOR1_CLK/FAST_BOOT_MODE |
| J14 | Reset | push-button | Key for system reset |
| J15 | Update | push-button | Key for system update |
| J16 | Power | push-button | Key for system Power |
| J17 | UART（Debug） | 2.54mm 4Pin header | UART(Debug) signals |
| J18 | RJ45 | Gigabit Ethernet | 10/100/1000-Mbps data transfer rates |
| J19 | Touch Panel | 2mm 6pin wafer，HC-PH-6A-M | Touch Panel |
| J20 | IO | 2mm Pitch 2*10Pin wafer，PM200-2-10-Z-4.3 | UART，GPIO Signals |
| J21 | RTC | 1.25mm Pitch 2Pin wafer | RTC battery power input 3.0V |
| J22 | FAN | 1.25mm Pitch 2Pin wafer | 12V power output for cooling FAN |
-
